Hand crank with blind hole
GN 570-210-S12 ElesaPA - Kunststoff
PA - plastic
Item-no.: 1206189Supplier number: 570-210-S12customs tariff number: 84879090EAN: 4045525296640
Quantity:
1 PiecePackable
Price and stock visible after login
Description
The protruding steel bushing of cranked handles GN 570 ensures an accurate bore and square to bore face. It can be retained with a pin or a retaining screw. The link between the cranked handle and shaft can be established either with a keyway or a follower pin.
Attributes

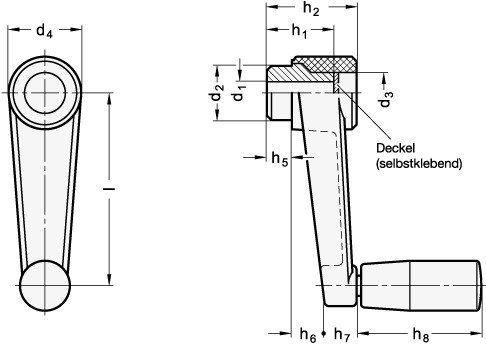

Borehole d1
S 12
Borehole filtercolumn
12
Crank length l
210
Material
PA - plastic, polyamide
RoHS
Ja
Weight
0.705 kg
d2
40
d3
31
d4
50
h1
53
h2
60
h5
15
h6
26
h7
20
h8
92.5
h8 ≈
92.5
Ø Cylinder handle
28
Ø Zylindergriff
28
