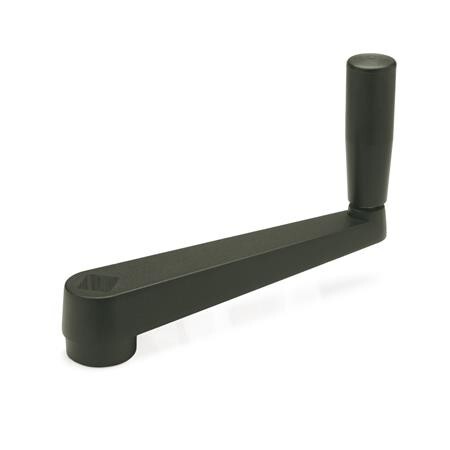

Hand crank with square

GN 471-125-V14 Aluminium, black

AL - Aluminium

Item-no.: 1203506Supplier number: 471-125-V14EAN: 4045525260320

Quantity:  1 PiecePackable

Item available in 8 variants:

Description

Cranked Handles, Aluminum

Attributes

Bore identification

V - with square

Borehole filtercolumn

14

Borehole filtercolumn 2

14

Crank length l

125

Material

AL - Aluminium

RoHS

Ja

Square s

V 14

Weight

0.224 kg

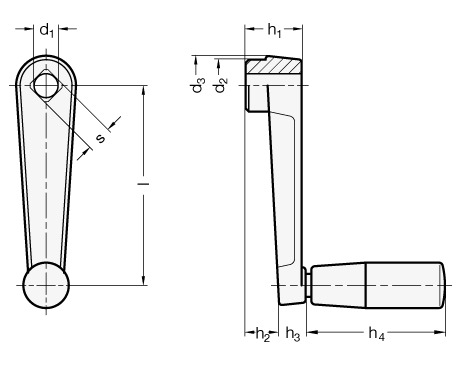

d2

32

d3

35

h1

34

h2

22

h3

18

h4

82.5

Ø Zylinder Griff GN 598

26
