Hand pump
THHP 300 300 MPa - SKF MaProItem-no.: 1526763Supplier number: THHP 300customs tariff number: 84132000EAN: 7316579534697
Quantity:
1 PiecePackable
Price and stock visible after login
Description

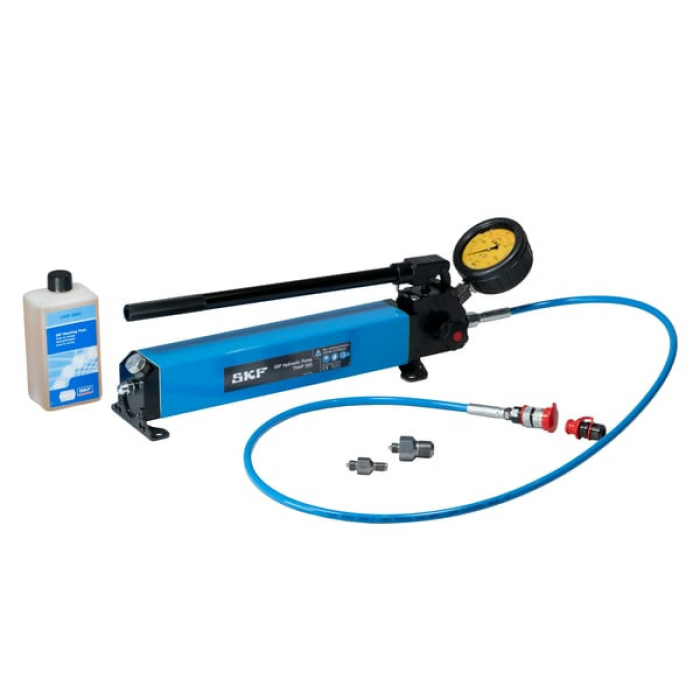

The THHP 300 is a high pressure, easy-to-connect manual hydraulic pump, suitable for many applications using the SKF Oil Injection Method, for oil pressures up to 3000 bar (300 MPa / 43500 psi). The two stage pump includes a 0-300 MPa (0-43500 psi) pressure gauge, a high-pressure hose, a quick connection coupling and various nipples to connect to the most common applications. Supplied in a sturdy carrying case. Connection nipples enable both G1/4 and G3/4 connections.
Attributes
Art der Pumpe
Double-stage
Betriebstemperaturbereich
10-35 °C
Colour
Blau; Schwarz
Connection
M16x1.5, one quick connector with female thread
Geeignet für Drive-up-Verfahren
No
Gehäusewerkstoff
leichte Aluminiumlegierung
Hose length
2000 mm
Inhalt
Pumpe mit Montageflüssigkeit;Druckschlauch;Schnellanschlusskupplung;Schnellanschlussnippel;2 Anschlussnippel;Manometer;Werkzeugkoffer;Dose mit 1 l Montageflüssigkeit
Maximaldruck
300 Mpa
Maximum pressure
3000 bar
Pressure gauge
ja
Total weight
9.1
Volumen pro Hub_1
40 cm³ below 1.6 MPa
Volumen pro Hub_2
0.5 cm³ above 1.6 MPa
Weight
7,50 kg
Ölbehälter, Fassungsvermögen
1600 ml
