Handwheel
GN 520.1-250-B22-DKU - Plastic
Item-no.: 1350686Supplier number: 520.1-250-B22-DEAN: 4045525097735
Quantity:
1 PiecePackable
Item available in 74 variants:
Price and stock visible after login
Description
Disk handwheels GN 520.1 are renowned in particular for the matte passivated aluminum ring. The tough, reinforced black plastic (Duroplast PF) and high gloss polished surface give the disk handwheels a touch of elegance. The ergonomic handle is easy to grasp and makes the disc handwheels easier to use. This standard replaces the previous handwheels GN 520.

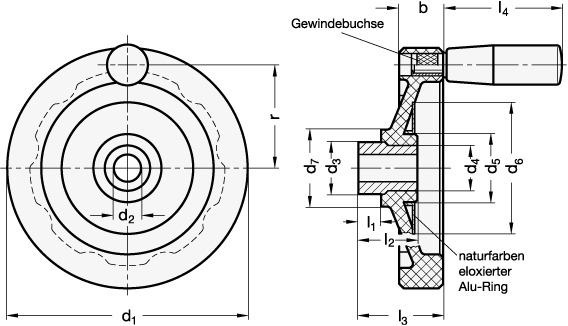

Attributes
Bore labelling
B - without hub groove
Borehole diameter d2
22
Form
D - with swivelling handle
Form D
40
Handwheel diameter d1
250
L1
15
Material
KU - Plastic
R
106
RoHS
Ja
Weight
1.511 kg
Zylinder-griff
28
b Form A
25
d3
49
d4 Form A
40
d5 Form A
66
d6 Form A
110
d7
70
l2 Form A
44
l3 Form A
65
l4
90
