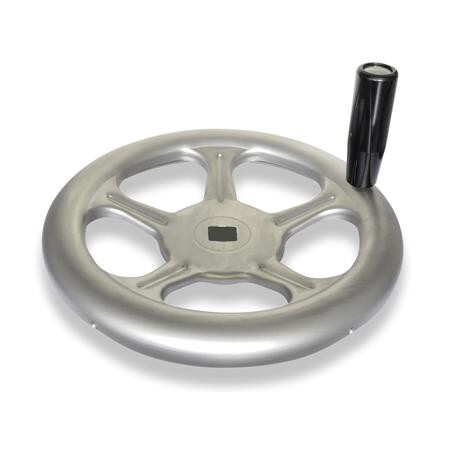

Handwheel made of A4 stainless steel
GN 228-A4-160-V12-D-GS with swivelling handleA4 - Edelstahl
Item-no.: 1476699Supplier number: 228-A4-160-V12-D-GScustoms tariff number: 84819000EAN: 4045525668348
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Handwheels GN 228 of stainless sheet steel are robust and unaffected by shocks and knocks. The hub lengths l1 and the diameter d3 correspond to DIN 950. The stainless steel design is suitable for applications in highly corrosive environments thanks to the A4 materials used. On the revolving handles of type D, the O-rings minimize the radial play, protect the handle bearing from penetrating dirt and prevent noises resulting from vibration.
Attributes
Anzahl der Speichen
4
Bore labelling
V - with square DIN 79
Borehole diameter d2
12
Form
D - with swivelling handle
Handwheel diameter d1
160
L1
20
L2
37
Material
A4 - Stainless steel
R
68
RoHS
Ja
Sheet thickness
1.5
Surface
GS - matt blasted
Weight
0.558 kg
b
22
d3
30
l2 ≈
37
l3
80
s Square
V 12
Ø Cylinder handle
26
