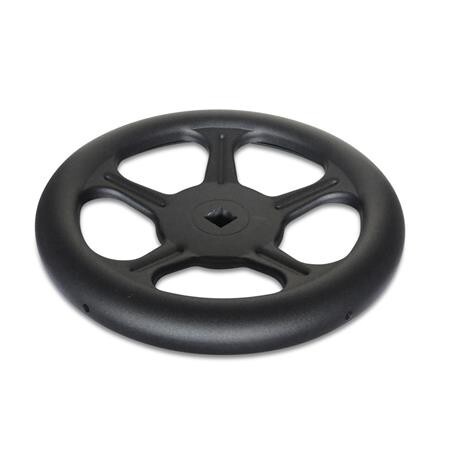

Handwheel made of sheet steel
GN 228-ST-200-V14-A-SWST - Stahl
Item-no.: 1476732Supplier number: 228-ST-200-V14-A-SWcustoms tariff number: 84819000EAN: 4045525659810
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Handwheels GN 228 of sheet steel are robust and unaffected by shocks and knocks. The hub lengths l1 and the diameter d3 correspond to DIN 950.
Attributes
Anzahl der Speichen
4
Bohrungsdurchmesser d2 / s
14
Bore identification
V - with square DIN 79
Bore labelling
V - with square
Colour
SW - black, RAL 9005, textured matt
Form
A - without handle
Handwheel diameter d1
200
L1
24
L2
46
Material
ST - Steel
RoHS
Ja
Sheet thickness
2
Weight
0.799 kg
b
22
d3
40
l2 ≈
46
s Square
V 14
