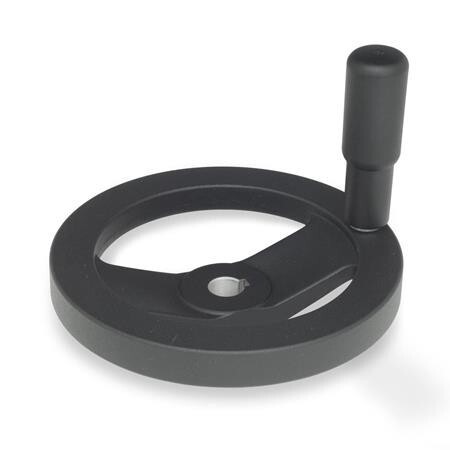

Handwheel with bore
GN 324-200-K20-R with groove, black, twist gripAL - Aluminium
Item-no.: 1196753Supplier number: 324-200-K20-Rcustoms tariff number: 84879090EAN: 4045525483279
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Spoked Handwheels, Black, Powder Coated

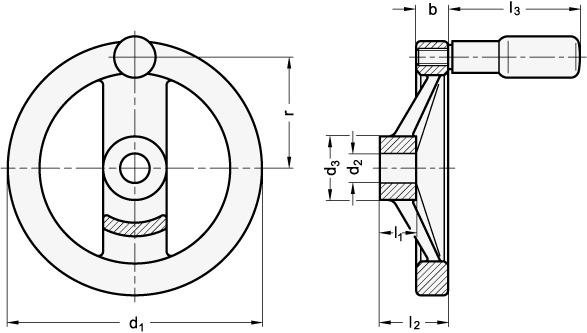

Attributes
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
20
Form
R - with swivelling handle
Handwheel diameter d1
200
L1
24
L2
45
Material
AL - Aluminium
R
89
RoHS
Ja
Weight
1.019 kg
Zylindergriff GN 798
25
b
20.5
d3
42
l3
86.5
