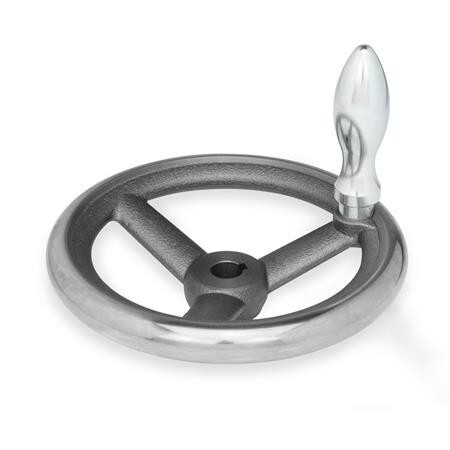

Rotatable handwheel with handle
DIN 950-GG-80-K10-D Cast iron, bore and grooveGG - Gusseisen
Item-no.: 1216319Supplier number: DIN 950-GG-80-K10-Dcustoms tariff number: 84879059EAN: 4045525410916
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.
Attributes
Anzahl der Speichen
3
Ballengriff
16
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
10
Form
D - with swivelling handle
Form F
48.5
Handle
16
Handwheel diameter d1
80
L1
16
L2
29
Material
GG - Cast iron
R
27
RoHS
Ja
Weight
0.347 kg
b
14
d3
24
d3 ≈
24
d4
M 6
l2 ≈
29
l3 Form D
53
l3 ≈Form D
53
s Square
V 9
