1215998 #1
Ganter

Handwheel with fixed handle

DIN 950-AL-140-B14-F Aluminium, bore without groove
AL - Aluminium
Item-no.: 1215998Supplier number: DIN 950-AL-140-B14-FEAN: 4045525399204
Quantity: ​​ 1 PiecePackable​
Item available in 31 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.

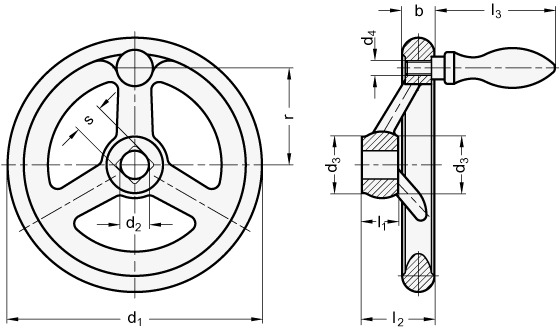

Attributes
Anzahl der Speichen
3
Ballengriff
20
Bore identification
B - without hub groove
Bore labelling
B - without hub groove
Borehole diameter d2
14
Form
F - with fixed handle
Form F
62
Handle
20
Handwheel diameter d1
140
L1
19
L2
39
Material
AL - Aluminium
R
52
RoHS
Ja
Weight
0.426 kg
b
17
d3
30
d3 ≈
30
d4
M 8
l2 ≈
39
l3 Form D
65
