Handwheel with large hub

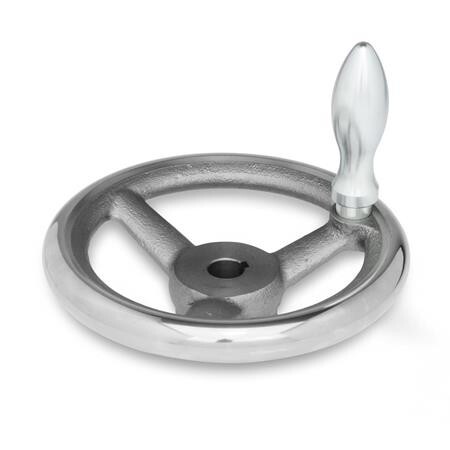

GN 950.1-GG-200-K20-D GG, with handle, bore and grooveGG - Gusseisen
Item-no.: 1075807Supplier number: 950.1-GG-200-K20-Dcustoms tariff number: 84879059EAN: 4045525411906
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Going beyond the DIN standard, handwheels GN 950.1 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle. Handwheels GN 950.1 have extended hubs with larger diameters, allowing for larger bores and an increased distance between the wheel rim and the fastening surface.
Attributes
Anzahl der Speichen
3
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
20
Form
D - with swivelling handle
Handwheel diameter d1
200
L1
38
L2
59
Material
GG - Cast iron
R
80
RoHS
Ja
Weight
2.500 kg
b
22
d3
50
d3 ≈
50
d4
M 10
l2 ≈
59
l3
80
l3 ≈
80
Ø Griff
25
ØHandle
25
