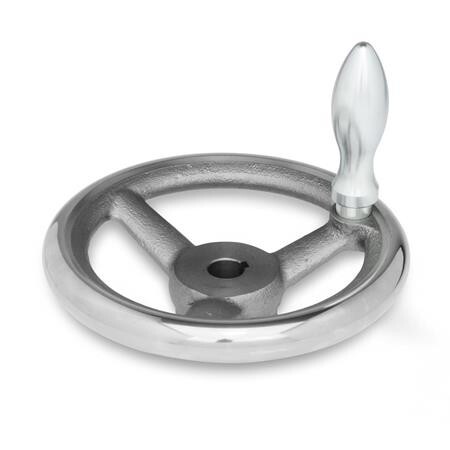

Handwheel with large hub
GN 950.1-GG-250-K24-D GG, with handle, bore and grooveGG - Gusseisen
Item-no.: 1215949Supplier number: 950.1-GG-250-K24-Dcustoms tariff number: 84879059EAN: 4045525412088
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Going beyond the DIN standard, handwheels GN 950.1 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle. Handwheels GN 950.1 have extended hubs with larger diameters, allowing for larger bores and an increased distance between the wheel rim and the fastening surface.

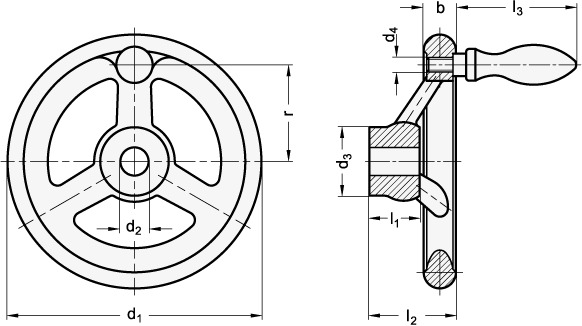

Attributes
Anzahl der Speichen
5
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
24
Form
D - with swivelling handle
Handwheel diameter d1
250
L1
44
L2
66
Material
GG - Cast iron
R
101
RoHS
Ja
Weight
4.460 kg
b
26
d3
56
d3 ≈
56
d4
M 12
l2 ≈
66
l3
102
l3 ≈
102
Ø Griff
32
ØHandle
32
