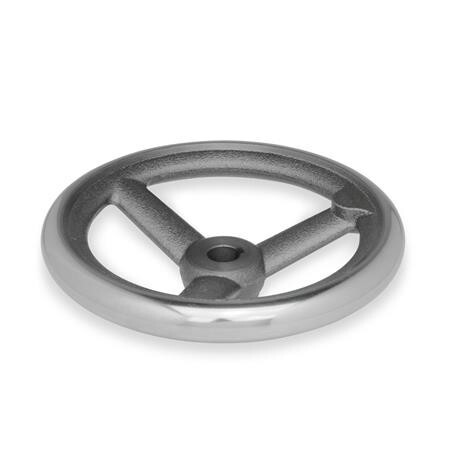

Handwheel without handle
DIN 950-GG-315-K30-A Cast iron, bore and grooveGG - Gusseisen
Item-no.: 1216266Supplier number: DIN 950-GG-315-K30-Acustoms tariff number: 84879059EAN: 4045525408760
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.
Attributes
Anzahl der Speichen
5
Ballengriff
32
Bore identification
K - with hub groove DIN 6885-1 P9
Bore labelling
K - with hub groove DIN 6885-1 P9
Borehole diameter d2
30
Form
A - without handle
Form F
96.5
Handwheel diameter d1
315
L1
33
L2
56
Material
GG - Cast iron
R
132
RoHS
Ja
Weight
5.918 kg
b
28
d3
53
d3 ≈
53
d4
M 12
l2 ≈
56
l3 Form D
102
s Square
V 19
