1216313 #1
Ganter

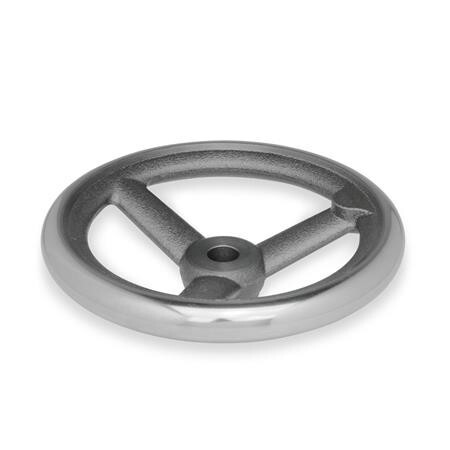

Handwheel without handle

DIN 950-GG-80-B10-A Cast iron, bore
GG - Cast iron
Item-no.: 1216313Supplier number: DIN 950-GG-80-B10-AEAN: 4045525410718
Quantity: ​​ 1 PiecePackable​
Item available in 359 variants:
Short-term Sourcing
Description
Going beyond the DIN standard, handwheels DIN 950 are also available with Ø d1 = 180 and in types F and D with fixed or revolving handle.
Attributes
Anzahl der Speichen
3
Ballengriff
16
Bore labelling
B - without hub groove
Borehole diameter d2
10
Form
A - without handle
Form F
48.5
Handwheel diameter d1
80
L1
16
L2
29
Material
GG - Cast iron
R
27
RoHS
Ja
Weight
0.300 kg
b
14
d3
24
d4
M 6
l3 Form D
53
s Square
V 9
