Blasepistole Typhoon Hochleistung
max 10 bar, Anschlussni. für Kupp. DN7,2 ohne DüseItem-no.: 1122372Supplier number: 29 K-KDEAN: 4047322247757
Quantity:
1 PiecePackable
Item available in 5 variants:
Price and stock visible after login
Description

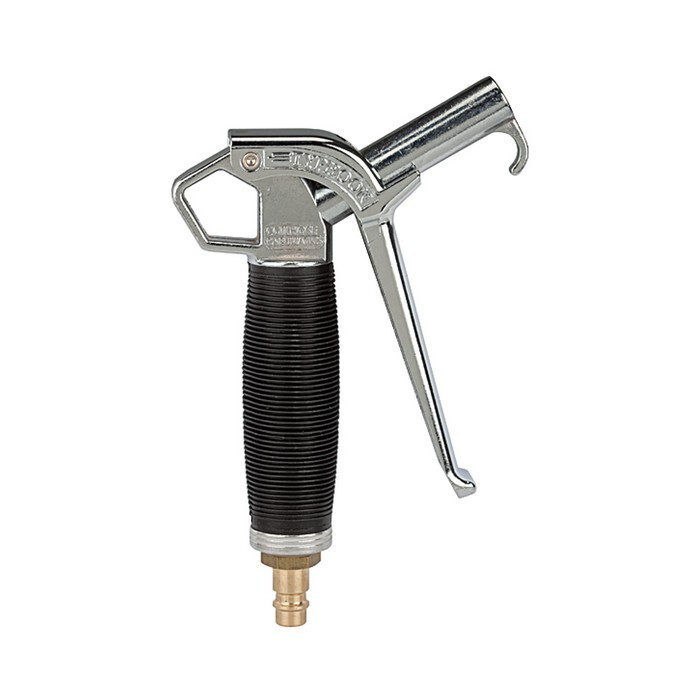

High performance air gun »Typhoon« without nozzle, Aluminium, Operating temp. -10 °C to 50 °C, PN max. 10 bar, Nipple I.D. 7.2-7.8. Steplessly adjustable, lightweight and ergonomically optimised high-volume blow gun with exceptionally high blowing power. The »Typhoon« model, which achieves approximately three times the blowing power of conventional guns, rests comfortably and securely in the hand even when full pressure is applied. Extension tubes can be supplied for blowing out inaccessible points. In combination with safety nozzles, this blow gun meets a wide range of safety requirements.
Attributes
Connection
DN 7.2-7.8
Connection thread
G 1/4
Connection type
Connection nipple for couplings NW 7.2 - 7.8
Gun body
Aluminium
Hand lever
Die-cast aluminium
Housing
Aluminium
Material
Aluminium
Max. operating pressure
10 bar
Nozzle
1/2" - 27 UNS
Nozzle type
Without nozzle
Operating pressure
max. 10 bar
Thread connection nozzle
1/2 - 27 US
Version
Without nozzle
