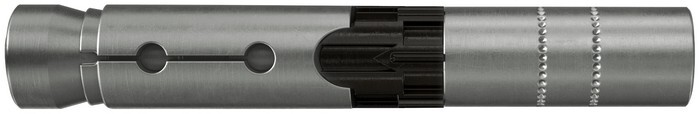

Hochleistungsanker mit Innengewinde
FH II 12/M 8 I R fischerItem-no.: 1162560Supplier number: 520361EAN: 4048962168402
PU (PU NW): 25 PiecePU (Packaging): 25 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
article 88689 A 4 FH II-I FISCHER high performance anchors FH II-I with internal thread M - dimension: FH II 12/M 8 I PU=S (25 pieces)
Attributes
Anchor length
77,5 mm
Attachement
Expanding anchor
Ausführung (etim)
External thread
Distance mounting
No
Drill nominal diameter
12 mm
Drive
Hexagon socket
ETA approval
Ja
Fastening device
other
Installation torque
15 Nm
Internal thread
M8
Material
Stainless steel
Material sleeve
Stainless steel
Max. screw-in depth
25 mm
Min. anchoring depth
67 mm
Min. drill hole depth for pre-insertion installation
85 mm
Number of discs
0
Number of nuts
0
Oberflächenschutz Anker
untreated
Oberflächenschutz der Hülse
untreated
Pre-assembly
Ja
Professional / DIY
Professional
Push-through mounting
No
Subsidence
3 - 5 mm
Test marks / approvals
VdS Anerkennung
Thread dimension (mm)
8 mm
Thread type
metric
VDS approval
Ja
Werkstoff Anker
Stainless steel
With collar
No
