Hochtemperatur Fügeverbindung

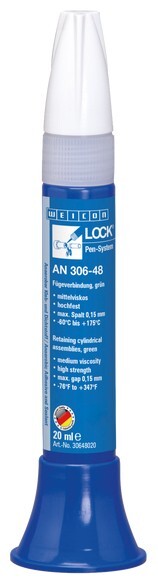

20 ml Pen, hochfest, mittelviskos Weicon AN 306-48, BAM-ZulassungItem-no.: 1123117Supplier number: 10016442EAN: 4024596019679
PU (Packaging): 20 PieceQuantity:
1 PiecePackable
Item available in 3 variants:
Price and stock visible after login
Description
· medium viscosity · high strength · hard to disassemble
Attributes
Breaking torque
30 - 35 Nm
Colour
green
Construction material class|DIN 4102
B2
End hardness|(100 % of strength)
2 - 4 Hours
For thread connection up to
M 20 R ¾\u201C
Further torque
55 - 77 Nm
Gap bridging up to max.
0,15 mm
Hand strength
5 Min.
Sales bundle
Plastic bottle
Shear strength Nmm² (DIN 54452)
25 - 35 N/mm²
Temperature resistance
-60°C to +175°C
Viscosity
550 nt mPa·s
