WEICONLOCK® AN 301-72 Rohr- und Flächendichtung Technisches Datenblattcnco_de_tds_weiconlock_an_301-72_rohr-_und_flaechendichtung.pdf
316.51 kB
Hochtemperatur Rohr- & Flächendichtung

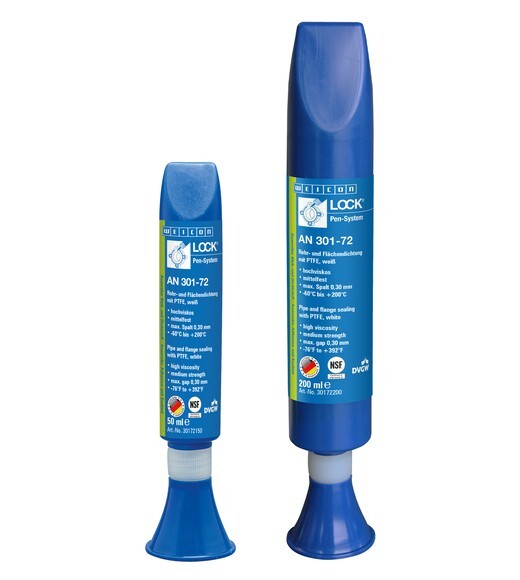

50 ml Pen, mittelfest, hochviskos Weicon AN 301-72, NSF und DVGW-ZulassungItem-no.: 1123189Supplier number: 10026836customs tariff number: 35061000EAN: 4047322342650
PU (Packaging): 12 PieceQuantity:
1 PiecePackable
Price and stock visible after login
Description
Lock AN 301-72, Anaerobic glue, Medium tight, High viscosity, Pipe / flat seal, DVGW, Temp. -60 °C to 200 °C, 50 ml. Non-classified adhesive for sensitive production areas - Very good strength - Resistant to high temperatures - Good chemical resistance after curing - High level of safety and health at work - No irritation to eyes, nose or throat - No marking with hazard symbols in accordance with EC Regulation No. 1907/2006 - ISO 11014-1
Attributes
Breaking torque
5 - 10 Nm
Colour
white
Construction material class|DIN 4102
B2
DVGW-Zulassung
DIN EN 751-1:1997-05
End hardness|(100 % of strength)
6-12 Hours
Festigkeit
mittelfest
For thread connection up to
M 80 R 3\
Further torque
4 - 6 Nm
Gap bridging up to max.
0,3 mm
Hand strength
15 - 30 Min.
Sales bundle
Tube
Shear strength Nmm² (DIN 54452)
5 - 7 N/mm²
Temperaturbeständigkeit max.
200 °C
Temperaturbeständigkeit min.
-60 °C
Temperature resistance
-60 °C to +200 °C
Viscosity
15.000 - 60.000 ht mPa·s
