Height cylinder
GN 9192.3-25-M8-20ST - Steel
Item-no.: 1484914Supplier number: 9192.3-25-M8-20EAN: 4045525721029
Quantity:
1 PiecePackable
Item available in 4 variants:
Price and stock visible after login
Description

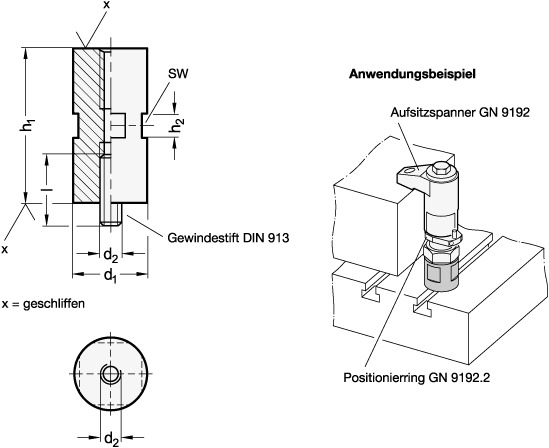

Height adjusting cylinders GN 9192.3 are used to increase the clamping height of down-thrust clamps GN 9192. Height adjusting cylinders can also be used in combination with positioning elements and clamping pads to position contact points at a greater distance from the reference surface.
Attributes
Length l
20
Material
ST - Steel
RoHS
Ja
SW
22
Weight
0.071 kg
d1
25
d2
M 8
h1
20
h2
10
