Horizintal clamp with pressure screw
GN 820.2-130-MFCC 10 - Einsatzstahl C 10
Item-no.: 1353497Supplier number: 820.2-130-MFCcustoms tariff number: 82057000EAN: 4045525126268
Quantity:
1 PiecePackable
Price and stock visible after login
Description

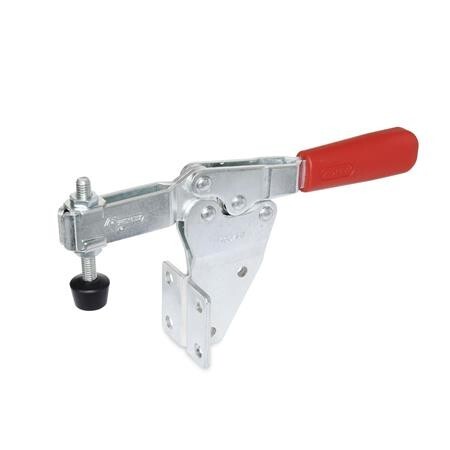

Toggle clamps GN 820.2 work according to the toggle principle: lever and clamping bar move in the opposite direction. They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point. Toggle clamps in the U-bar version with two flanged washers (type MF) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MFC.
Attributes
A
32
FH Haltekraft
1000 N
FH in N holding force
1000
Form
MFC - open clamping arm, with 2 flank discs and pressure screw GN 708.1
L1
170
L2
45
Material
C 10 - Case-hardening steel C 10
R
61
RoHS
Ja
Size
130
Weight
0.260 kg
a ≈
32
b1
39
b2
35
b3
6.5
d1
M 6
d2
5.5
h1
85
h2
57.5
h3
16
h4
25.5
h5 max.
47.5
h5max.
47.5
l3
95
l4
55
m1
26
m2
22
m3
6.5
s
2.5
w Adjustment range
17.5
