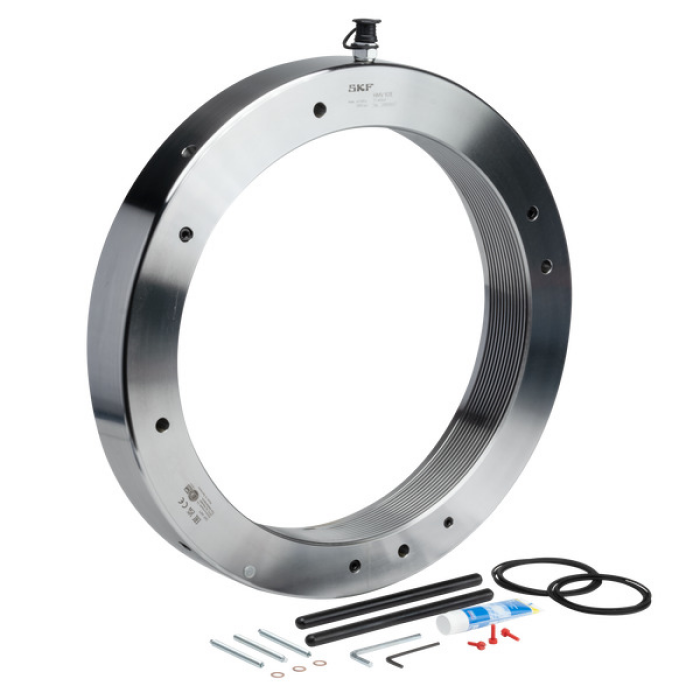

Hydraulic nut
HMV 110E SKF MaProItem-no.: 1384981Supplier number: HMV 110Ecustoms tariff number: 84122180EAN: 7316577107213
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 550x6
Kolbenaußendurchmesser
667 mm
Kolbenbreite
13 mm
Kolbenfläche
59200 mm²
Kolbeninnendurchmesser
552 mm
Maximaldruck
25 Mpa
Maximale Kolbenschiefstellung
21 mm
Maximum pressure
250 bar
Outer diameter
693 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
84 kg
Width
70 mm
