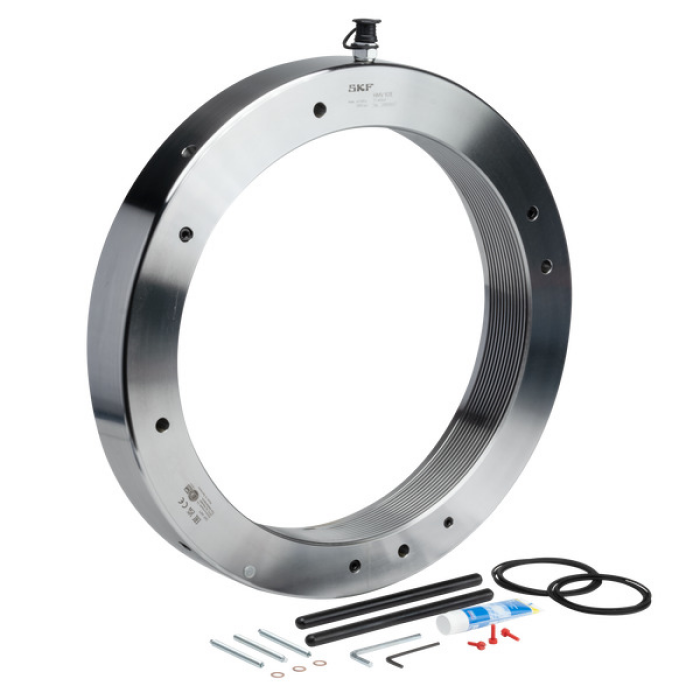

Hydraulic nut
HMV 114E SKF MaProItem-no.: 1384985Supplier number: HMV 114Ecustoms tariff number: 84122180EAN: 7316577107275
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 570x6
Kolbenaußendurchmesser
689 mm
Kolbenbreite
13 mm
Kolbenfläche
63200 mm²
Kolbeninnendurchmesser
572 mm
Maximaldruck
25 Mpa
Maximale Kolbenschiefstellung
23 mm
Maximum pressure
250 bar
Outer diameter
716 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
91 kg
Width
72 mm
