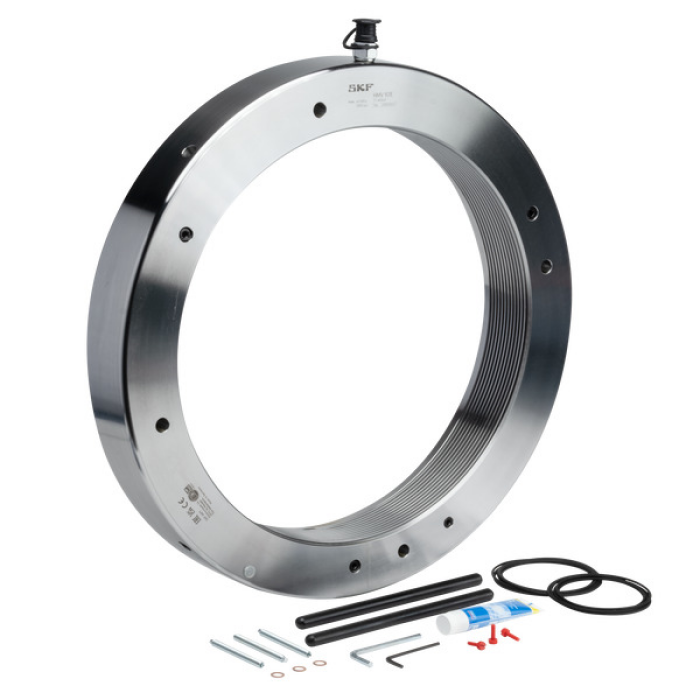

Hydraulic nut
HMV 125E SKF MaProItem-no.: 1385410Supplier number: HMV 125Ecustoms tariff number: 84122180EAN: 7316576809491
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 625x6
Kolbenaußendurchmesser
754 mm
Kolbenbreite
15 mm
Kolbenfläche
72900 mm²
Kolbeninnendurchmesser
627 mm
Maximaldruck
25 Mpa
Maximale Kolbenschiefstellung
23 mm
Maximum pressure
250 bar
Outer diameter
782 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
116 kg
Width
74 mm
