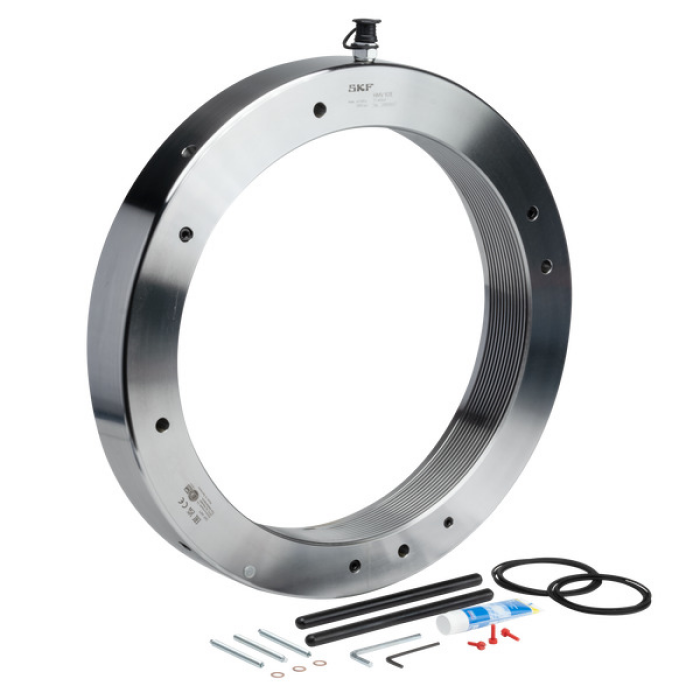

Hydraulic nut
HMV 155E SKF MaProItem-no.: 1443986Supplier number: HMV 155Ecustoms tariff number: 84122180EAN: 7316570637878
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 775x7
Kolbenaußendurchmesser
910 mm
Kolbenbreite
16 mm
Kolbenfläche
99500 mm²
Kolbeninnendurchmesser
777 mm
Maximaldruck
25 Mpa
Maximale Kolbenschiefstellung
25 mm
Maximum pressure
250 bar
Outer diameter
939 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
153 kg
Width
80 mm
