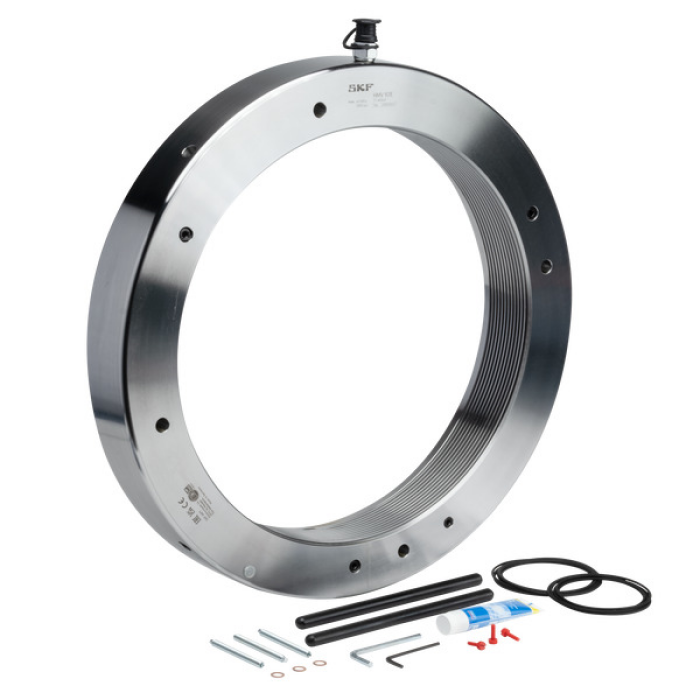

Hydraulic nut
HMV 200E SKF MaProItem-no.: 1443991Supplier number: HMV 200Ecustoms tariff number: 84122180EAN: 7316570755626
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 1000x8
Kolbenaußendurchmesser
1150 mm
Kolbenbreite
17 mm
Kolbenfläche
145800 mm²
Kolbeninnendurchmesser
1002 mm
Maximaldruck
25 Mpa
Maximale Kolbenschiefstellung
34 mm
Maximum pressure
250 bar
Outer diameter
1180 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
239 kg
Width
88 mm
