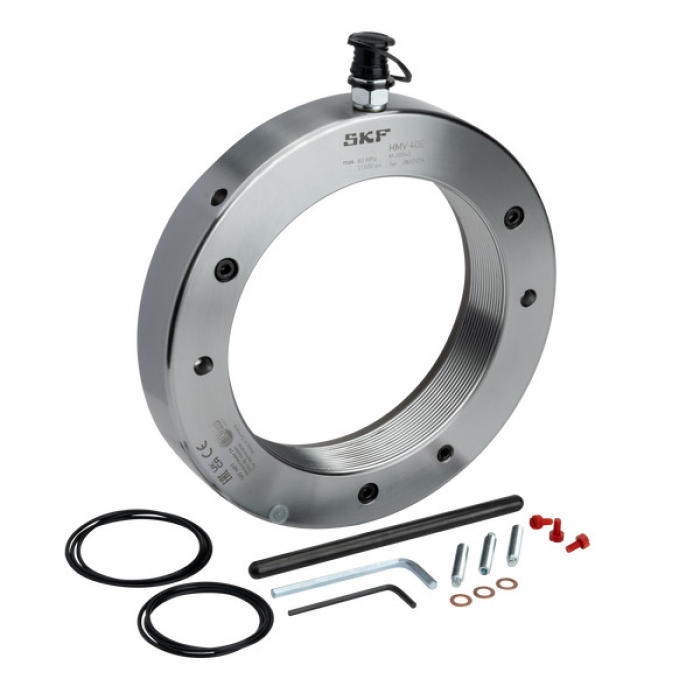

Hydraulic nut
HMV 62E SKF MaProItem-no.: 1385061Supplier number: HMV 62Ecustoms tariff number: 84122180EAN: 7316577014375
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 310x5
Kolbenaußendurchmesser
397 mm
Kolbenbreite
10 mm
Kolbenfläche
24900 mm²
Kolbeninnendurchmesser
312 mm
Maximaldruck
40 Mpa
Maximale Kolbenschiefstellung
14 mm
Maximum pressure
400 bar
Outer diameter
416 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
27 kg
Width
52 mm
