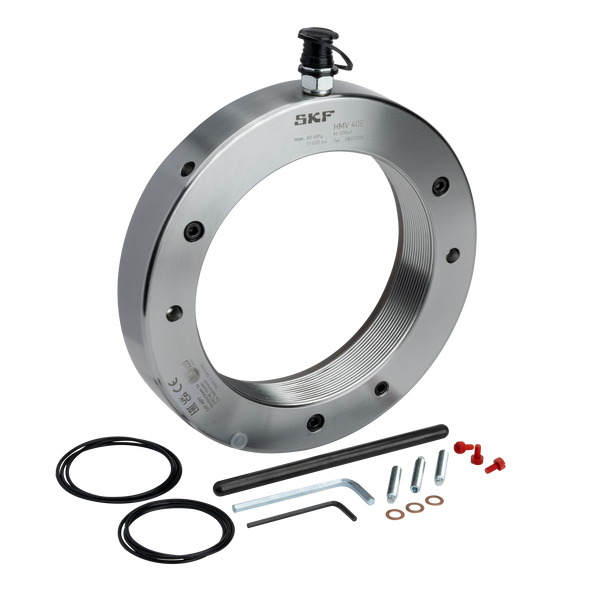

Hydraulic nut
HMV 74E SKF MaProItem-no.: 1385075Supplier number: HMV 74Ecustoms tariff number: 84122180EAN: 7316577014443
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 370x5
Kolbenaußendurchmesser
466 mm
Kolbenbreite
11 mm
Kolbenfläche
32800 mm²
Kolbeninnendurchmesser
372 mm
Maximaldruck
40 Mpa
Maximale Kolbenschiefstellung
16 mm
Maximum pressure
400 bar
Outer diameter
486 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
39 kg
Width
57 mm
