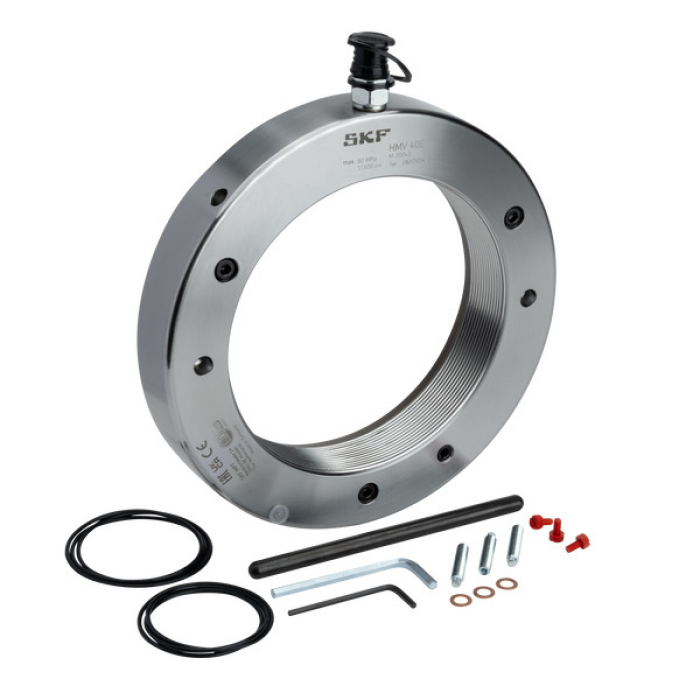

Hydraulic nut
HMV 84E SKF MaProItem-no.: 1249629Supplier number: HMV 84Ecustoms tariff number: 84122180EAN: 7316577014450
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 420x5
Kolbenaußendurchmesser
522 mm
Kolbenbreite
11 mm
Kolbenfläche
40000 mm²
Kolbeninnendurchmesser
422 mm
Maximaldruck
40 Mpa
Maximale Kolbenschiefstellung
17 mm
Maximum pressure
400 bar
Outer diameter
546 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
50 kg
Width
61 mm
