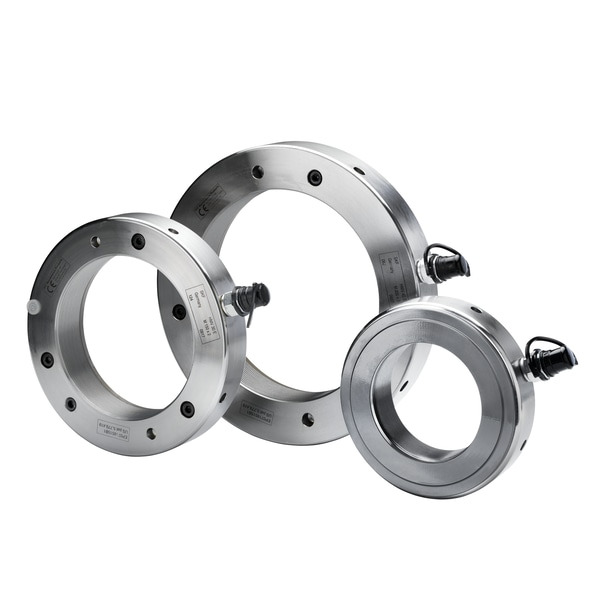

Hydraulic nut
HMV 92E SKF MaProItem-no.: 1385092Supplier number: HMV 92Ecustoms tariff number: 84122180EAN: 7316577014467
Quantity:
1 PiecePackable
Price and stock visible after login
Description
Facilitates easy and quick application of the high drive-up forces required for mounting bearings on tapered seatings. The hydraulic nut can also be used for dismounting bearings mounted on either adapter or withdrawal sleeves.
Attributes
Connection thread
Tr 460x5
Kolbenaußendurchmesser
565 mm
Kolbenbreite
12 mm
Kolbenfläche
45100 mm²
Kolbeninnendurchmesser
462 mm
Maximaldruck
40 Mpa
Maximale Kolbenschiefstellung
17 mm
Maximum pressure
400 bar
Outer diameter
590 mm
Screw thread
ISO 2901-1977 tolerance class 7H
Weight
60 kg
Width
64 mm
