Hazet

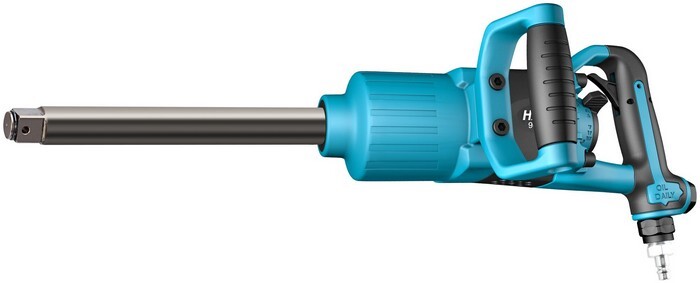

Impact wrench compressed air

3400 Nm square 1" Hazet 9014P-1
Item-no.: 1409744Supplier number: 9014P-1customs tariff number: 84671190EAN: 4000896218332

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
· Loosening torque maximum [Nm]: 3400 Nm · Output designed with hole for pinning as well as a nut-driver holder ring · Operation optimised on both sides for left and right handed users · One-hand reversing switch · Extremely powerful tool · Optimised feel · Air inlet on the handle at the bottom and rear · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Long spindle (240 mm) for optimal accessibility of wheel bolts · Direct hammer striking mechanism · Air connection inlet: Inside thread 20.67 mm (1/2″) · Coupler plug: Nominal size 10 (included) · Recommended torque: 2400 Nm · Hose diameter (recommended): 19 mm · Working pressure (bar): 6.3 · Sound power level: 114.5 db(A) Lp W · Vibration acceleration: 15.94 m/s2 · Loosening torque (max) determined with screw size M: 36 · Forward and reverse: three-stage (forward and reverse) · Cold insulated handle · Output: 1 inch (25 mm) square, solid · Net weight: 8.58 kg · For impact operation · Tightening torque max Nm: 2712 Nm · Loosening torque maximum [Nm]: 3400 Nm · Sound pressure level: 103.5 dB(A) Lp A · Revolutions per minute: 5500 · Air requirement: 283 l/min (4.7 l/sec).
Piktogramm
Piktogramm
Piktogramm
Attributes
Air connection inlet
Female thread 20.67 mm (1/2″)
Air requirement [l/min]
283 l/min
Air requirement [l/sec]
4.7 l/sec
Anzugsmoment maximal [Nm]
2712 Nm
Anzugsmoment maximal [lbf.ft]
2000.27 lbf.ft
Clockwise/anticlockwise rotation
Three-stage (clockwise and anti-clockwise rotation)
Coupling plug
Nominal size 10 (included)
Handle
Cold insulating handle
Hazardous substance labelling
false
Hose diameter (recommended)
19 mm
Impact mechanism (type)
Direct hammer impact mechanism
Loosening moment (max) determined with screw size M
36 M
Lösemoment maximal [Nm]
3400 Nm
Maximum loosening moment
3400 Nm
Net weight
8580 g
Net weight (g)
8580 g
Net weight (kg)
8.58 kg
Operating pressure
6.3 bar
Operating pressure (bar)
6.3 bar
Output
1 inch (25 mm) solid square
Recommended torque
2400 Nm
Revolutions/minute (maximum)
5500 upm
Series
auya_9014P
Sound power level
114.5 db(A) Lp W
Sound power level (at operating pressure)
114.5 db(A) Lp W
Sound pressure level
103.5 dB(A) Lp A
Sound pressure level (at operating pressure)
103.5 dB(A) Lp A
Vibration acceleration
15.94 m/s2
