Hazet

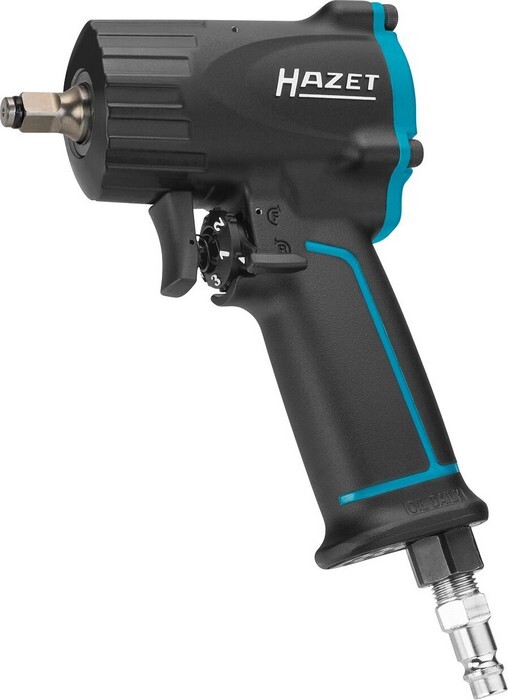

Impact wrench compressed air

extra short 92 mm Hazet 9011M
Item-no.: 1340962Supplier number: 9011Mcustoms tariff number: 84671190EAN: 4000896201570

PU (Packaging): 10 PieceQuantity: ​​ 1 PiecePackable
Promotional item
Short-term Sourcing

Description
· Loosening torque maximum [Nm]: 461 Nm · Extremely compact construction enables working in areas with restricted access · One-hand operation for right and left handed operators · Exhaust air is guided through the handle downwards · Reduced vibrations · Easy handling · Extra short – only 92 mm · Single hammer striking mechanism · Air connection inlet: Inside thread 12.91 mm (1/4″) · Coupler plug: Nominal size 7.2 (included) · Recommended torque: 375 Nm · Hose diameter (recommended): 10 mm · Working pressure (bar): 6.3 · Sound power level: 101.3 db(A) Lp W · Vibration acceleration: 7.78 m/s2 · Loosening torque (max) determined with screw size M: 13 · Forward and reverse: three-stage (forward), single-stage (reverse) · Cold insulated handle · Output: 3/8 inch (10 mm) square, solid · Net weight: 1.24 kg · For impact operation · Tightening torque max Nm: 461 Nm · Loosening torque maximum [Nm]: 461 Nm · Sound pressure level: 90.3 dB(A) Lp A · Revolutions per minute: 6500 · Air requirement: 85.2 l/min (1.4 l/sec).
Piktogramm
Piktogramm
Piktogramm
Attributes
Air connection inlet
Internal thread 12.91 mm (1/4″)
Air requirement [l/min]
85.2 l/min
Air requirement [l/sec]
1.4 l/sec
Anzugs-Drehmoment max
461 Nm
Anzugsmoment maximal [Nm]
461 Nm
Clockwise/anticlockwise rotation
three-stage (clockwise rotation), single-stage (anti-clockwise rotation)
Coupling plug
Nominal diameter 7.2 (included)
Handle
Cold insulating handle
Hazardous substance labelling
false
Hose diameter (recommended)
10 mm
Impact mechanism (type)
Jumbo hammer striking mechanism
Loosening moment (max) determined with screw size M
13 M
Lösemoment maximal [Nm]
461 Nm
Maximum loosening moment
461 Nm
Net weight
1240 g
Net weight (g)
1240 g
Net weight (kg)
1.24 kg
Operating pressure
6.3 bar
Operating pressure (bar)
6.3 bar
Output
3/8 inch (10 mm) square solid
Recommended torque
375 Nm
Revolutions/minute (maximum)
6500 upm
Series
auya_9011M
Sound power level
101.3 db(A) Lp W
Sound power level (at operating pressure)
101.3 db(A) Lp W
Sound pressure level
90.3 dB(A) Lp A
Sound pressure level (at operating pressure)
90.3 dB(A) Lp A
Vibration acceleration
7.78 m/s2
