Straight tapered handle
DIN 99-50-M6-M Internal threadItem-no.: 1217010Supplier number: DIN 99-50-M6-MEAN: 4045525421349
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 1 variants:
Price and stock visible after login
Description
The official DIN standard sheet specifies additional sizes 40 - M5 / B5.

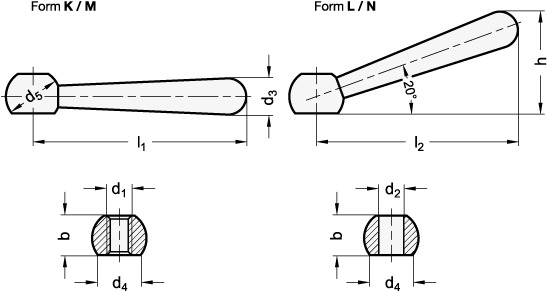

Attributes
Connection bore d21
B 6
Connection bore d22
B 6
Connection thread d1
M 6
Connection thread d11
M 6
Connection thread d12
M 6
Form
M - Straight handle with thread
Handle body material
ST - Steel
Handle length l1
50
L2
48
RoHS
Ja
Weight
0.017 kg
b
9.5
d3
8
d4
7.5
d4 ≈
7.5
d5
12
h
24
h ≈
24
l2 ≈
48
