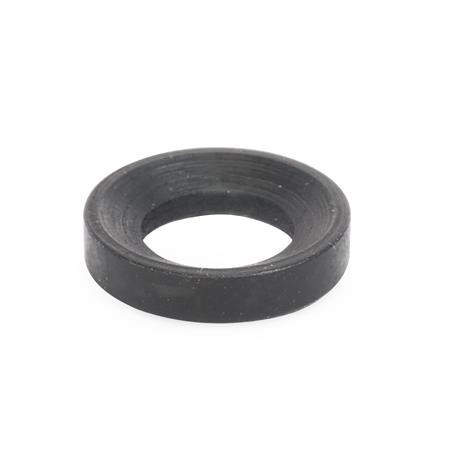

Tapered ladle case-hardening steel
DIN 6319-12-D for M 10Item-no.: 1130258Supplier number: DIN 6319-12-Dcustoms tariff number: 73182200EAN: 4045525324121
PU (Packaging): 25 PieceQuantity:
1 PiecePackable
Item available in 31 variants:
Price and stock visible after login
Description
Spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces. The dished washers type G with enlarged outside diameter are mainly used on elongated holes. When utilizing hexagon nuts with spherical seating DIN 6330 type B the spherical washer is redundant.
Attributes
Bohrungsdurchmesser Form D / Form G d11
12
Bore diameter d1 (form D)
12
Form
D - conical socket with d~3~ = d~2~
Max. transmittable static bolt force in kN
26
RoHS
Ja
Weight
0.006 kg
d3
21
d5
18.5
d6 Schraube
M 10
d6 für Schraube
M 10
h3
4.2
h5
6.5
h5 ≈
6.5
max. übertragbare statische Schraubenkraft
26 kN
