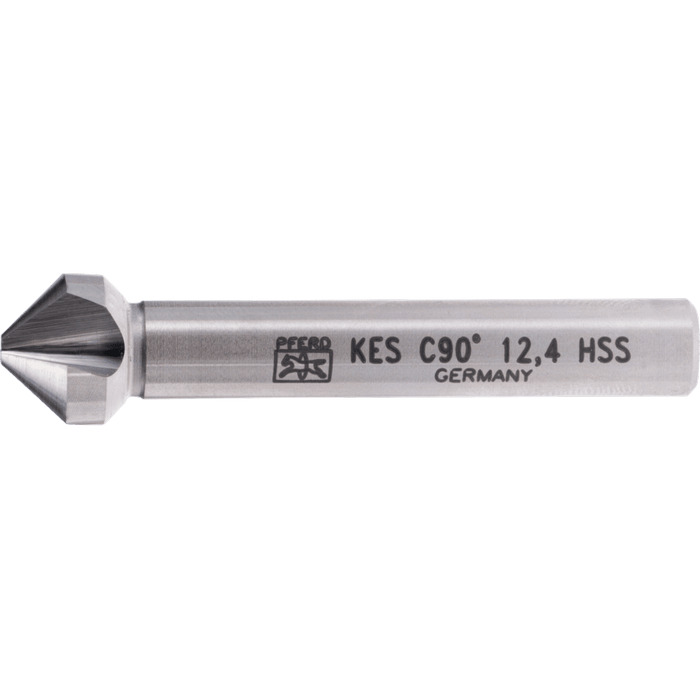

Countersink
KES HSS DIN 335 C90° 12.4 PferdItem-no.: 1416651Supplier number: 25202111EAN: 4007220166673
Quantity:
1 PiecePackable
Item available in 74 variants:
Price and stock visible after login
Description
Conical countersinks from PFERD are characterized by their particularly sharp blades that are able to achieve very good results, even at low cutting speeds. High-performance countersink tools with a countersink angle of 90° for countersinking 90° screws for all common materials such as steel, cast steel and non-ferrous metals.
Attributes
Angle
90 °
Length, total
56 mm
RPM from, grey cast iron, white cast iron
260 RPM
RPM from, stainless and acid-resistant steels
260 RPM
RPM from, steels up to 700 N/mm²
390 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CFRP)
260 RPM
RPM of, soft non-ferrous metals
390 RPM
RPM up to, grey cast iron, white cast iron
260 RPM
RPM up to, soft non-ferrous metals
520 RPM
RPM up to, stainless and acid-resistant steels
390 RPM
RPM up to, steels up to 700 N/mm²
520 RPM
RPM up to, thermoplastics, fibreserv. plastics (GFK/CFK)
390 RPM
Series
byly_KES_HSS_DIN335_C90
Version
HSS
Ø
12.4 mm
Ø Shaft metric
8 mm
