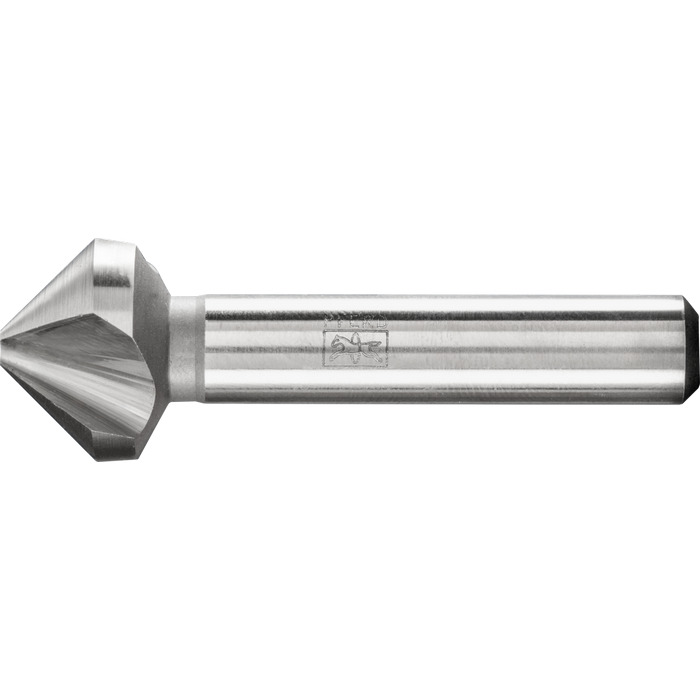

Countersink
KES HSSE DIN 335 C90° 20.5 PferdItem-no.: 1416675Supplier number: 25202136EAN: 4007220168226
Quantity:
1 PiecePackable
Item available in 74 variants:
Price and stock visible after login
Description
Conical countersinks from PFERD are characterized by their particularly sharp blades that are able to achieve very good results, even at low cutting speeds. High-performance countersink tools with a countersink angle of 90° for countersinking 90° screws for particularly tough and hard materials such as alloyed and high-strength steel and stainless steel (INOX). Long tool life and temperature-resistant version due to Co content.
Attributes
Angle
90 °
Length, total
63 mm
RPM from, grey cast iron, white cast iron
150 RPM
RPM from, stainless and acid-resistant steels
150 RPM
RPM from, steels over 700 N/mm²
150 RPM
RPM from, steels up to 700 N/mm²
230 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CFRP)
150 RPM
RPM of, hard non-ferrous metals
150 RPM
RPM of, soft non-ferrous metals
230 RPM
RPM up to, grey cast iron, white cast iron
150 RPM
RPM up to, hard non-ferrous metals
300 RPM
RPM up to, soft non-ferrous metals
300 RPM
RPM up to, stainless and acid-resistant steels
230 RPM
RPM up to, steels over 700 N/mm²
230 RPM
RPM up to, steels up to 700 N/mm²
300 RPM
RPM up to, thermoplastics, fibreserv. plastics (GFK/CFK)
230 RPM
Version
HSSE
Ø
20.5 mm
Ø Shaft metric
10 mm
