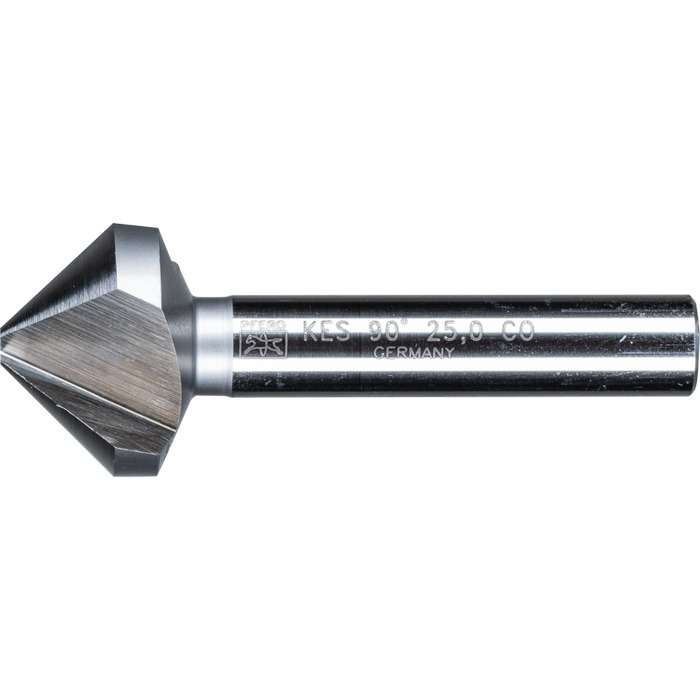

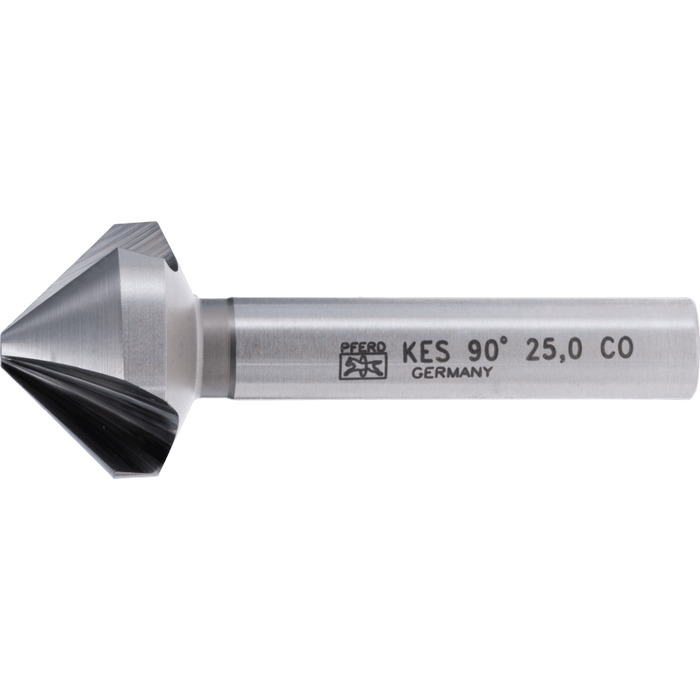

Countersink
KES HSSE DIN 335 C90° 25.0 PferdItem-no.: 1416677Supplier number: 25202138EAN: 4007220168240
Quantity:
1 PiecePackable
Item available in 74 variants:
Price and stock visible after login
Description
Conical countersinks from PFERD are characterized by their particularly sharp blades that are able to achieve very good results, even at low cutting speeds. High-performance countersink tools with a countersink angle of 90° for countersinking 90° screws for particularly tough and hard materials such as alloyed and high-strength steel and stainless steel (INOX). Long tool life and temperature-resistant version due to Co content.
Attributes
Angle
90 °
Length, total
67 mm
RPM from, grey cast iron, white cast iron
140 RPM
RPM from, stainless and acid-resistant steels
140 RPM
RPM from, steels over 700 N/mm²
130 RPM
RPM from, steels up to 700 N/mm²
200 RPM
RPM from, thermoplastics, fibre-reinforced plastics (GRP/CFRP)
140 RPM
RPM of, hard non-ferrous metals
130 RPM
RPM of, soft non-ferrous metals
200 RPM
RPM up to, grey cast iron, white cast iron
140 RPM
RPM up to, hard non-ferrous metals
260 RPM
RPM up to, soft non-ferrous metals
260 RPM
RPM up to, stainless and acid-resistant steels
200 RPM
RPM up to, steels over 700 N/mm²
200 RPM
RPM up to, steels up to 700 N/mm²
260 RPM
RPM up to, thermoplastics, fibreserv. plastics (GFK/CFK)
200 RPM
Series
byly_KES_HSSE_DIN335_C90
Version
HSSE
Ø
25 mm
Ø Shaft metric
10 mm
