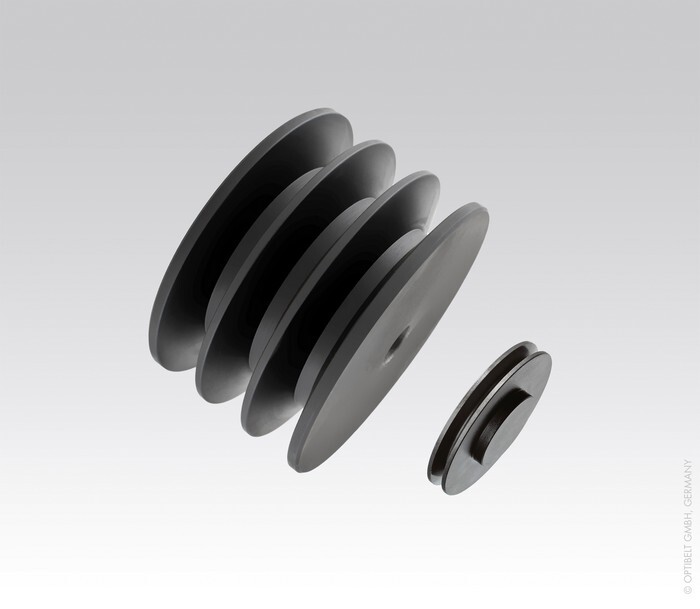

V-belt pulley DIN 2211

SPA 106/4 for cylindrical bore
Item-no.: 1322243EAN: 4014486232363

Quantity: ​​ 1 PiecePackable
Short-term Sourcing

Description
Keilriemenscheibe SPA, für zylindrische Bohrung
Attributes
Diameter
106 mm
Finished bore d max
32 mm
Length hub length l
53 mm
Material
EN-GJL 200 - DIN EN 1561
Number of grooves
4
Product group
optibelt KS Cylindrical
Reference diameter dd
106 mm
Version
Floor disc (with or without mirror)
Weight
2.96 kg
Weight per
Piece
Width of collar b2
67 mm
