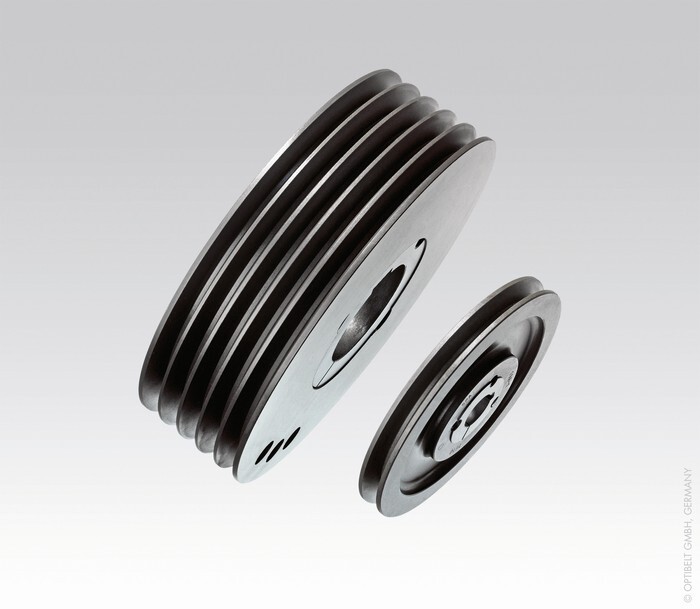

V-belt pulley DIN 2211
SPA 180/1 for taper bush TB 1610Item-no.: 1071878customs tariff number: 84835020EAN: 4014486245622
Quantity:
1 PiecePackable
Price and stock visible after login
Description
für Taperbuchsen · ohne Buchse · Material: EN-GJL200 - DIN EN 1561 - Rillen nach DIN 2211 · Weitere technische Eigenschaften: · Modell: Profil SPA/13
Attributes
Diameter
180 mm
Material
EN-GJL 200 - DIN EN 1561
Nabendurchmesser
92 mm
Number of grooves
1
Outer diameter
185.5 mm
Product group
optibelt KS for taper bush
Reference diameter dd
180 mm
Socket reference
TB 1610
Typ
Wedge belt pulleys
Version
Arm disc
Weight
2.21 kg
Weight per
Piece
Width of collar b2
20 mm
