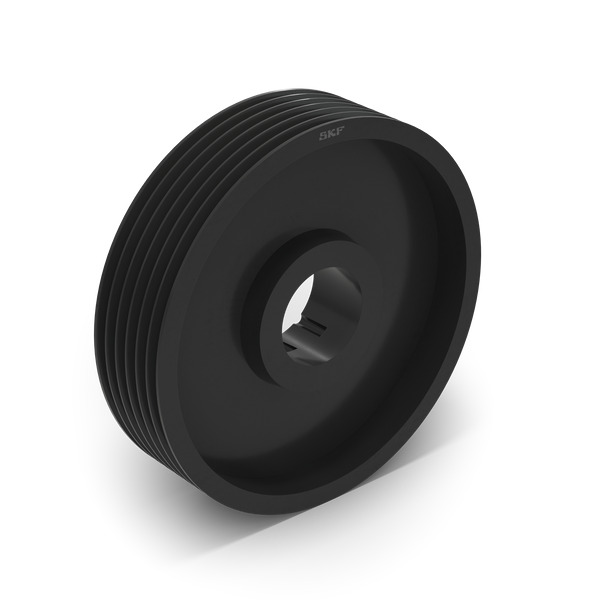

V-belt pulley DIN 2211
SPA 224/2 for taper bush TB 2517Item-no.: 1071900customs tariff number: 84835020EAN: 4014486245837
Quantity:
1 PiecePackable
Price and stock visible after login
Description
für Taperbuchsen · ohne Buchse · Material: EN-GJL200 - DIN EN 1561 - Rillen nach DIN 2211 · Weitere technische Eigenschaften: · Modell: Profil SPA/13
Attributes
Diameter
224 mm
Material
EN-GJL 200 - DIN EN 1561
Nabendurchmesser
120 mm
Number of grooves
2
Outer diameter
229.5 mm
Product group
optibelt KS for taper bush
Reference diameter dd
224 mm
Socket reference
TB 2517
Typ
Wedge belt pulleys
Version
Arm disc
Weight
5.17 kg
Weight per
Piece
Width of collar b2
35 mm
