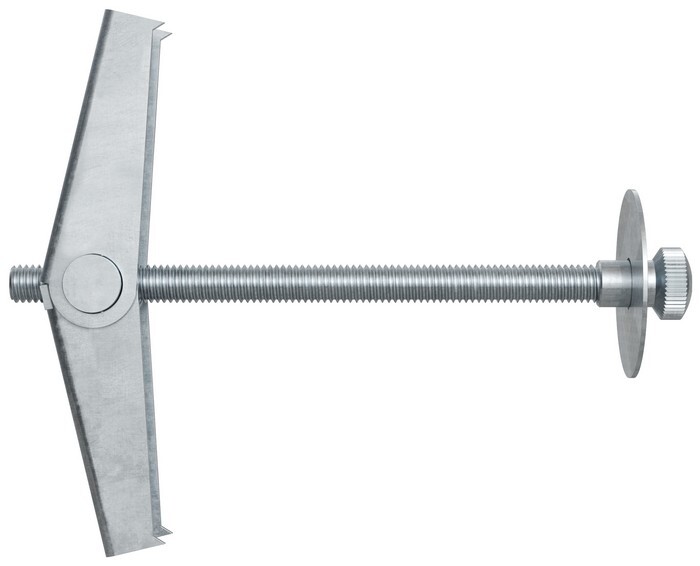

Tilting dowel
KD 4 fischerItem-no.: 1059833Supplier number: 080183EAN: 4006209801833
PU (PU NW): 25 PiecePU (Packaging): 25 PieceQuantity:
25 PiecePackable
Price and stock visible after login
Description
article 88518 steel KD zinc plated FISCHER spring toggles KD with screw for assembly in cavities - dimension: KD 4 x 105 PU=S (25 pieces)
Attributes
Construction material
Panel building material
Dowel length
105 mm
Dowel material
Metal
Drill nominal diameter
14 mm
Max. sheet thickness
69 mm
Min. cavity depth
34 mm
Professional / DIY
Professional
Screw thread
M4 x 100 mm
Surface protection
Galvanised/electrolytically galvanised
Thread dimension (mm)
4 mm
Thread type
metric
VDS approval
Ja
Version
with threaded shank
With nut
Ja
With screw
No
With thread
Ja
