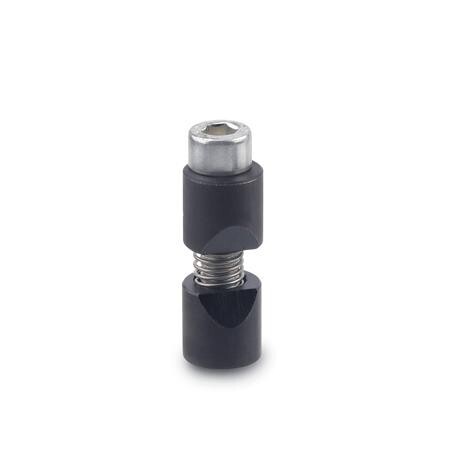

Clamping element clamping round
GN 928-10ST - Stahl
Item-no.: 1215823Supplier number: 928-10customs tariff number: 82057000EAN: 4045525395541
Quantity:
1 PiecePackable
Price and stock visible after login
Description

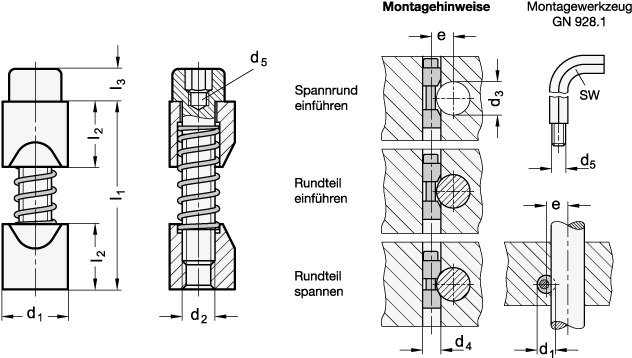

With the shaft clamping units GN 928, round workpieces from 6 to 125 mm can be rapidly, accurately and economically clamped. The threaded hole d5 can be used for attaching a jig or fixture or a fixing screw for holding the clamping unit in an axial position during an assembly operation.
Attributes
Article no. assembly tool
928.1-4
Diameter d
10
L2
10
Material
ST - Steel
Max. tightening torque in Nm
6
RoHS
Ja
SW
4
Screw thread
M 5
Weight
0.013 kg
d3 Rundteil
10 - 15
d4
10
d5
M 3
e
d~3~ / 2 + 3,3
l1 max.
33
l3
5
max. Anzugsmoment
6 Nm
