Ganter

Clamping lever

GN 303.2-63-M6-63-SW-S Black handle, black knob
Item-no.: 1478001Supplier number: 303.2-63-M6-63-SW-Scustoms tariff number: 84879090EAN: 4045525560949

Quantity: ​​ 1 PiecePackable
Item available in 228 variants:
Short-term Sourcing

Description

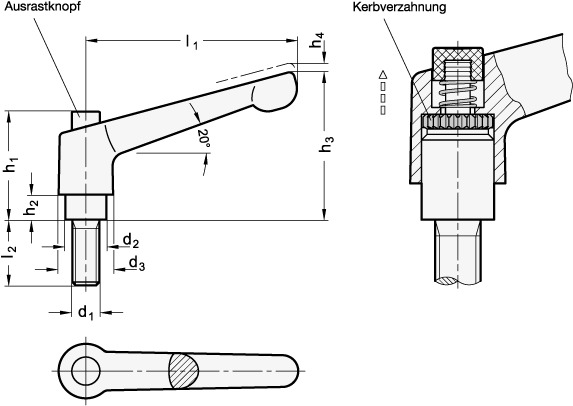

Adjustable hand levers GN 303.2 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. The releasing button is a design element that offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.
Attributes
Adjustable
True
Colour
S - black, RAL 9005
Colour handle body
SW - black, RAL 9005, textured matt
Connection thread d1
M 6
Handle body material
ZD - Zinc die casting
Handle length l1
63
RoHS
Ja
Thread length l2
63
Weight
0.038 kg
d2
13.5
d3
17.5
h1
32.5
h2
6.5
h3
45
h4 Rastweg
4
