Clamping lever
GN 604.1-63-B8-SG Stainless steel, black-greyItem-no.: 1398253Supplier number: 604.1-63-B8-SGcustoms tariff number: 84879090EAN: 4045525528024
Quantity:
1 PiecePackable
Item available in 14 variants:
Price and stock visible after login
Description
Adjustable hand levers GN 604 like all the products of the Ergostyle® family are renowned for their good style but also their ergonomical shape. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.

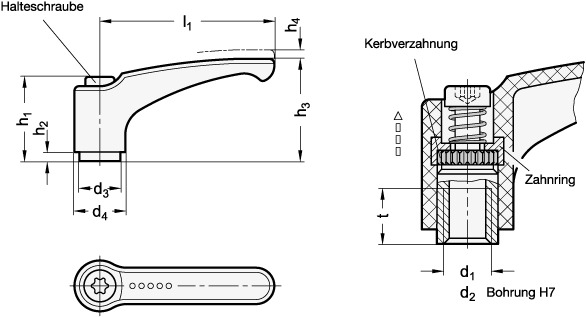

Attributes
Adjustable
True
Colour
SG - black-grey, RAL 7021, matt
Connection bore d2
B 8
Handle body material
PA - plastic, polyamide
Handle length l1
63
RoHS
Ja
Weight
0.032 kg
d3
13.5
d4
19
h1
31
h2
3.5
h3
38.5
h4 Rastweg
4
tmin.
10
