Clamping lever with internal thread
GN 601-63-M8 Elesa 232121-C1Item-no.: 1206352Supplier number: 601-63-M8EAN: 4045525463370
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
Design and handling of the clamping levers GN 601 comply with the requirements and claims of the Ergostyle® product family.

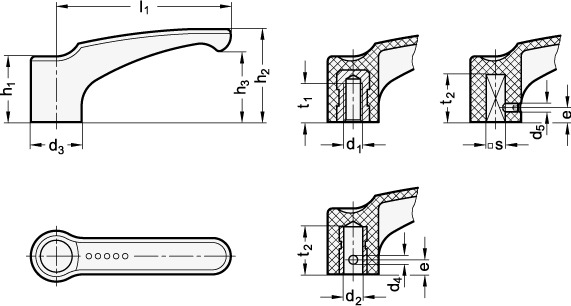

Attributes
Connection thread d1
M 8
Handle body material
PA - plastic, polyamide
Handle length l1
63
RoHS
Ja
Weight
0.022 kg
d3
19
d4
4
d5
M 4
e
8
h1
24.5
h2
35
h3
26.5
t1min.
13
t2 min.
20
