Clamping lever with internal thread
GN 601-78-M10 Elesa 232141-C1Item-no.: 1206355Supplier number: 601-78-M10EAN: 4045525463417
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
Design and handling of the clamping levers GN 601 comply with the requirements and claims of the Ergostyle® product family.

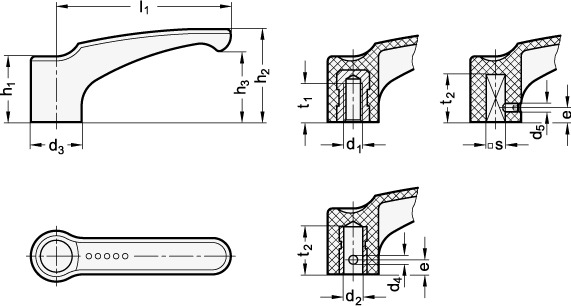

Attributes
Connection thread d1
M 10
Handle body material
PA - plastic
Handle length l1
78
RoHS
Ja
Weight
0.038 kg
d3
23
d4
4
d5
M 5
e
9
h1
29.5
h2
42
h3
32
t1min.
17
t2 min.
25
