Clamping lever with internal thread
GN 601-95-M12 Elesa 232161-C1Item-no.: 1206359Supplier number: 601-95-M12customs tariff number: 84879090EAN: 4045525463455
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 17 variants:
Price and stock visible after login
Description
Design and handling of the clamping levers GN 601 comply with the requirements and claims of the Ergostyle® product family.

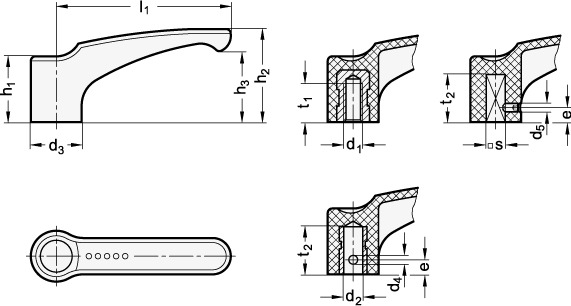

Attributes
Connection thread d1
M 12
Handle body material
PA - plastic, polyamide
Handle length l1
95
RoHS
Ja
Weight
0.050 kg
d3
26.5
d4
5
d5
M 5
e
10
h1
34
h2
51.5
h3
40
t1min.
20
t2 min.
30
