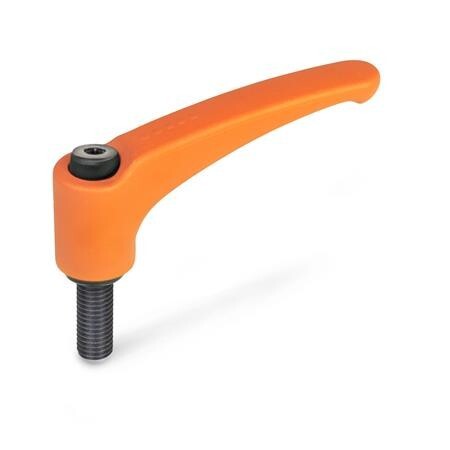

Clamping lever with screw, adjustable

GN 602-63-M10-32-OS Elesa 240277-C2
Item-no.: 1206690Supplier number: 602-63-M10-32-OSEAN: 4045525829619

Quantity: ​​ 1 PiecePackable
Item available in 748 variants:
Short-term Sourcing

Description
Adjustable clamping levers GN 602, like all the products of the Ergostyle® family, are renowned for their good style but also their ergonomical shape. The gently arched handle with a reinforced end of the lever gives the operator a good grip. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
OS - orange, RAL 2004, textured matt
Connection thread d1
M 10
Handle body material
ZD - Zinc die casting
Handle length l1
63
RoHS
Ja
Thread length l2
32
Weight
0.093 kg
d2
13.5
d3
18
h1
31
h2
3.5
h3
38
h4 Rastweg
4
