Elesa

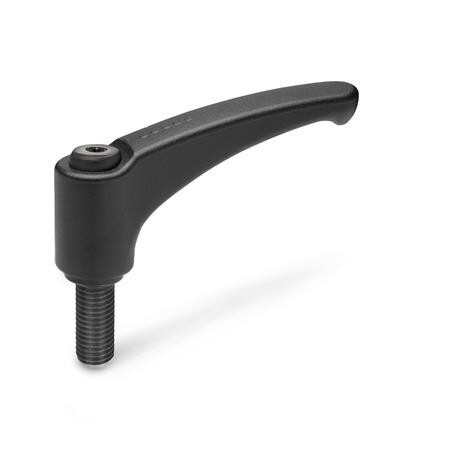

Clamping lever with screw, adjustable

GN 602-78-M12-32-SW Elesa 240375-C9
Item-no.: 1206817Supplier number: 602-78-M12-32-SWEAN: 4045525476219

Quantity: ​​ 1 PiecePackable
Item available in 748 variants:
Short-term Sourcing

Description
Adjustable clamping levers GN 602, like all the products of the Ergostyle® family, are renowned for their good style but also their ergonomical shape. The gently arched handle with a reinforced end of the lever gives the operator a good grip. Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal new location. On releasing the handle the serrations re-engage automatically.
Attributes
Adjustable
True
Colour
SW - black, RAL 9005, textured matt
Connection thread d1
M 12
Handle body material
ZD - Zinc die casting
Handle length l1
78
RoHS
Ja
Thread length l2
32
Weight
0.159 kg
d2
16
d3
21.5
h1
36
h2
3.5
h3
46
h4 Rastweg
4
