Ganter

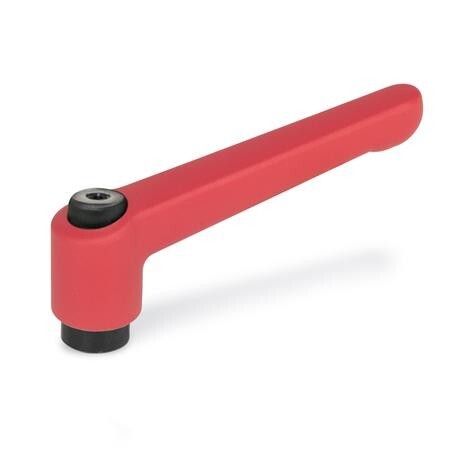

Adjustable clamping lever

GN 300-45-M6-RS IG, RAL 3000 red
Item-no.: 1194640Supplier number: 300-45-M6-RScustoms tariff number: 84879090EAN: 4045525758896
Quantity: ​​ 1 PiecePackable​
Item available in 1197 variants:
Short-term Sourcing
Description
Adjustable hand levers GN 300 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever, disengages the serrations and allowing it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Attributes
Colour
RS - red, RAL 3000, textured matt
Connection thread d1
M 6
Handle body material
ZD - Zinc die casting
Handle length l1
45
RoHS
Ja
Weight
0.033 kg
d3
10
d4
13
h1
24.5
h2
4
h3
34
h4 Rastweg
3.5
t min.
9
tmin.
9
