Adjustable clamping lever
GN 500-63-M8-60-SW Elesa 41569Item-no.: 1203845Supplier number: 500-63-M8-60-SWcustoms tariff number: 84879090EAN: 4045525264618
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 47 variants:
Price and stock visible after login
Description

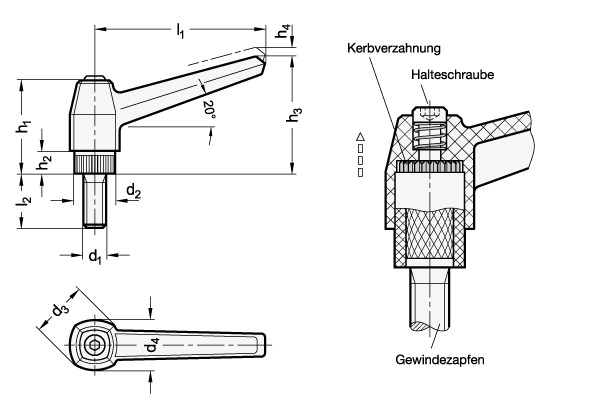

Adjustable hand levers GN 500 besides their good design, offer the advantage that the plastic material used is fully penetrated by the colour and will not show any discolouring through abrasion or use. When pulling the handle, the serration frees itself and can be re-located into any required position. When "releasing" the lever the serration re-engages automatically.
Attributes
Adjustable
True
Colour
SW - black, RAL 9005, matt
Connection thread d1
M 8
Handle body material
PA - plastic, polyamide
Handle length l1
63
RoHS
Ja
Thread length l2
60
Weight
0.051 kg
d2
15
d3
23
d4
20
h1
34
h2
8
h3
43
h4 Rastweg
4
