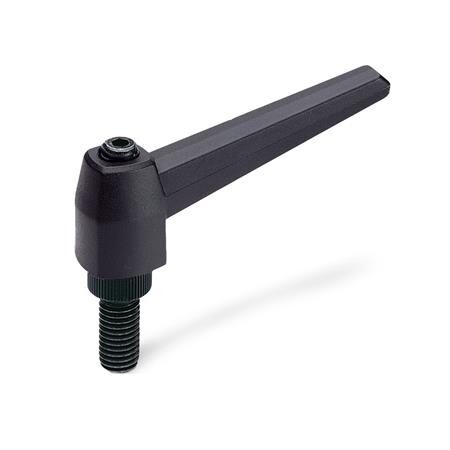

Adjustable clamping lever
GN 500-80-M10-25-SW Elesa 42211Item-no.: 1203848Supplier number: 500-80-M10-25-SWcustoms tariff number: 84879090EAN: 4045525264830
PU (Packaging): 10 PieceQuantity:
1 PiecePackable
Item available in 47 variants:
Price and stock visible after login
Description
Adjustable hand levers GN 500 besides their good design, offer the advantage that the plastic material used is fully penetrated by the colour and will not show any discolouring through abrasion or use. When pulling the handle, the serration frees itself and can be re-located into any required position. When "releasing" the lever the serration re-engages automatically.
Attributes
Adjustable
True
Colour
SW - black, RAL 9005, matt
Connection thread d1
M 10
Handle body material
PA - plastic, polyamide
Handle length l1
80
RoHS
Ja
Thread length l2
25
Weight
0.074 kg
d2
19
d3
28
d4
24
h1
42
h2
10
h3
54
h4 Rastweg
4
